DLC Coating Services
DLC Coating Services. Diamond-like carbon (DLC) coatings can be deposited by different techniques such as PVD arc, PVD sputtering and PACVD processes.
Certifications ISO 9001:2015 | AS9100D | ITAR
Mekalite DLC Coating Service
Mekalite specializes in advanced Diamond-Like Carbon (DLC) coatings that provide high hardness close to natural diamond for a variety of parts. Our DLC coatings provide excellent friction resistance, low sliding resistance, and superior wear resistance to extend part life and improve overall performance, even under extreme conditions.
Precision and Expertise
With industry-leading equipment, Mekalite consistently performs every coating job to a high standard. With over 20 years of experience in the industry, we have a deep understanding of the process and performance optimization of DLC coatings. Whether it’s increasing hardness, optimizing wear performance or reducing the coefficient of friction, we can tailor an effective solution to meet your specific needs.
Uncompromising Quality
At Mekalite, quality control is always a top priority. Our DLC coatings meet international industry standards to ensure high quality and consistency in every delivery. We balance efficient production cycles with strict quality control processes to ensure superior consistency and help our customers upgrade their technology in a cost-effective manner.
Applications and Benefits
Ideally suited for CNC machining and other high wear environments, our DLC coatings offer the following benefits
- Extended component life through superior wear resistance
- Reduced friction for improved operating efficiency
- Reliable performance under extreme conditions
Mekalite is committed to providing customized, high-quality DLC coating services to improve the performance and life of your critical components. Partner with us to experience innovative solutions backed by expertise and precision.
Details of our DLC Coating Service Process
Mekalite utilizes internationally advanced Physical Vapor Deposition (PVD) and Plasma Enhanced Chemical Vapor Deposition (PECVD) processes to achieve Diamond-Like-Carbon (DLC) coatings with high uniformity and excellent performance. Our coating process covers every step from surface pretreatment, optimization of deposition parameters to final inspection to ensure a stable, robust and dense coating.
- Surface pre-treatment: Thorough cleaning and activation of the substrate material ensures adhesion between the coating and the substrate and reduces the risk of flaking.
- Precise control of parameters: Depending on the material and application requirements, parameters such as vacuum, gas ratio, deposition time and temperature are adjusted to obtain the best coating performance.
- Multi-layer structure design: Multi-layer or gradient structure design can be used to further enhance abrasion resistance and protection to meet the needs of extreme use environments.
- Comprehensive monitoring and quality control: Key indicators in the process are monitored online and all finished products are rigorously tested for thickness, adhesion and performance.
The details of Mekalite’s process will give you a sense of what is in store for you.
We can also do more post-processing
PVD Coating Services
Mekalite’s PVD coatings enhance the hardness, wear resistance and corrosion protection of components. Our thin-film coatings utilize advanced vacuum deposition technology to ensure low friction and high precision, making them ideal for CNC machining, aerospace, and automotive industries.Mekalite meets your needs with stringent quality and fast lead times to enhance product performance. Contact us today.

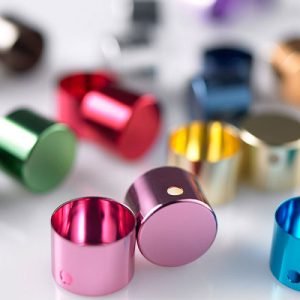

Anodizing Services
Mekalite specializes in advanced Physical Vapor Deposition (PVD) coatings for superior durability, corrosion resistance and aesthetics. Our PVD coatings enhance component performance in high-stress environments, providing superior protection and extended life in a variety of applications.
What are the functions of DLC coating service?
DLC (Diamond-Like Carbon) coating services provide a range of valuable functions for a variety of components and surfaces. The primary function is to significantly improve wear resistance, protecting parts from abrasion and extending their service life. It also creates low-friction surfaces that reduce energy loss and minimize heat generation between moving parts.
DLC coatings provide excellent corrosion protection and act as a barrier against moisture and chemical attack. Coatings increase surface hardness, making parts more durable and more resistant to scratches or impacts. In addition, DLC coatings are chemically inert, biocompatible (for medical applications), and enhance the aesthetics of the product due to their bright, uniform finish. In short, DLC coating services help to improve the performance, reliability and lifetime of mechanical, electronic, automotive, medical and industrial components.
Key Properties of DLC Coatings
DLC coatings stand out for their exceptional physical properties. Here are the primary technical specifications:
Property
Value
Hardness
15-30 GPa (2000-5000 HV)
Coefficient of Friction
0.1-0.25 (dry), <0.1 (lubricated)
Coating Thickness
1-5 microns
Deposition Temperature
~170-200°C
Max Service Temperature
~350°C

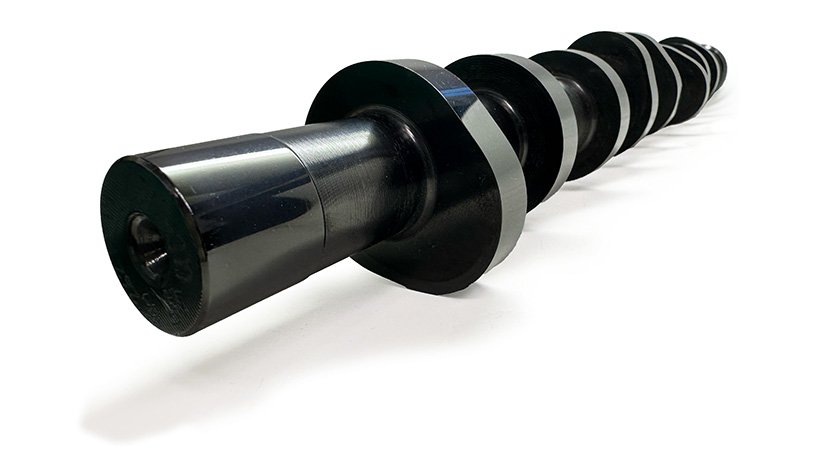

These attributes make DLC coatings ideal for applications requiring high wear resistance and low friction, such as engine components, cutting tools, and medical implants.
DLC vs. Traditional Coatings
DLC coatings outperform many traditional PVD coatings. Here’s a comparison with TiN and CrN:
Coating | Hardness (HV) | Coefficient of Friction | Max Temperature |
|---|---|---|---|
DLC | 2000-5000 | 0.1-0.25 | 350°C |
TiN | 2300 | 0.4-0.6 | 600°C |
CrN | 1800 | 0.3-0.5 | 700°C |
DLC’s friction coefficient is 200-500% lower than TiN and CrN, making it ideal for low-friction, wear-resistant applications, while its low-temperature deposition suits a wider range of substrates.
Deposition Methods
DLC coatings are deposited using advanced vacuum techniques such as Physical Vapor Deposition (PVD) or Plasma Enhanced Chemical Vapor Deposition (PECVD). These methods ensure strong substrate bonding, uniform coating distribution and long-lasting surface properties.
check out this comprehensive guide to DLC coating.
Success Story
An aerospace customer applied our DLC coatings to carbide cutting tools, increasing tool life by 200 percent and dramatically reducing downtime and replacement costs. Similarly, a medical device manufacturer uses our biocompatible DLC coatings to meet FDA food contact standards (EC 1935/2004) and improve the durability of implants.
Why choose Mekalite's DLC coating service?
CNC Expertise: Our deep experience in CNC machining ensures coatings are perfectly tailored to your components.
Fast Turnaround: Standard orders delivered in 2-4 weeks, with flexibility for small batches.
Custom Solutions: From substrate selection to coating formulation, we provide end-to-end customization.
ISO 9001 Certified: Our processes meet rigorous industry standards for reliable quality.
Frequently Asked Questions (FAQ)
What substrates are compatible with DLC coatings?
Suitable for steel, titanium, carbide, and select ceramics. Contact us for aluminum or polymer substrates.
How durable are DLC coatings?
With hardness up to 2000-5000 HV, DLC coatings excel in high-wear, high-friction environments.
What are the lead times and costs?
Standard orders take 2-4 weeks. Pricing depends on part size and complexity—contact us for a custom quote.
Boost Performance with Mekalite’s DLC Coatings
Upgrade your components with Mekalite’s advanced DLC coatings—offering diamond-like hardness, low friction, and unmatched wear resistance. Contact us now to optimize your CNC machining and industrial applications.
