In today’s manufacturing world, where precision and speed are critical, producing complex parts for industries like aerospace and medical demands cutting-edge technology. Enter 5-axis CNC (Computer Numerical Control) machining—a method that’s transforming how intricate components are made. Unlike traditional 3-axis or 4-axis systems, 5-axis machining offers unmatched flexibility, allowing manufacturers to create complex shapes with fewer steps, higher accuracy, and faster production times. This article explores how 5-axis CNC machining outperforms its predecessors, its applications in crafting parts like aerospace turbine blades and medical implants, and why it’s a must-have for engineers and technical procurement professionals aiming to stay competitive.
The Evolution of CNC Machining: From 3-Axis to 5-Axis
CNC machining is a subtractive process where computer-controlled tools carve material from a workpiece to form precise parts. The number of axes a machine operates on defines its capabilities:
- 3-Axis CNC Machining: Moves along three linear axes—X (left-right), Y (front-back), and Z (up-down). It’s great for flat or simple shapes, like 2D panels or 2.5D components with some depth, but struggles with parts needing multi-angle access. Multiple setups are often required, increasing time and error risks.
- 4-Axis CNC Machining: Adds one rotational axis (typically A or B) to the three linear axes, allowing the workpiece or tool to rotate. This enables machining of features like undercuts or angled surfaces, but complex parts may still need several setups.

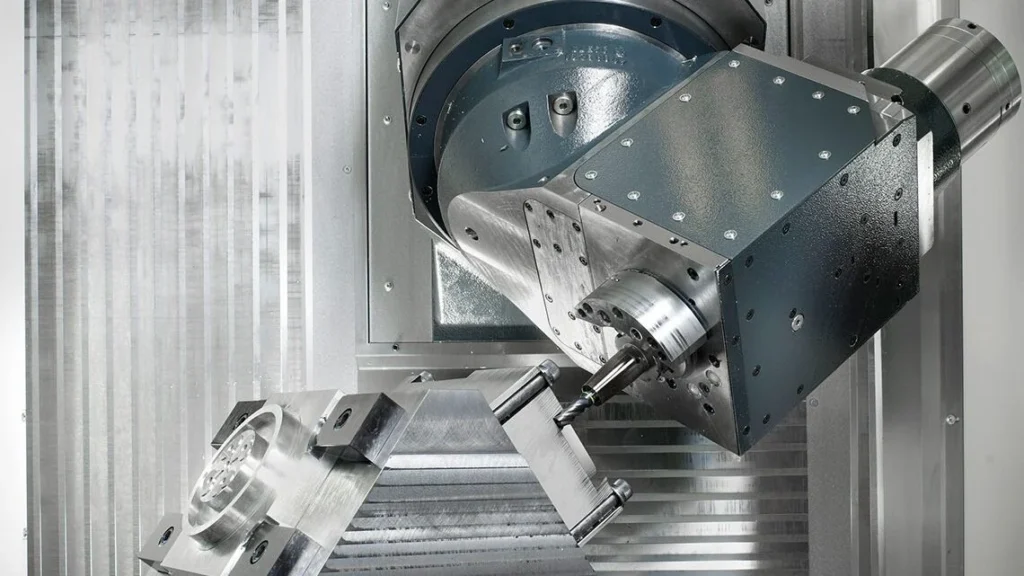

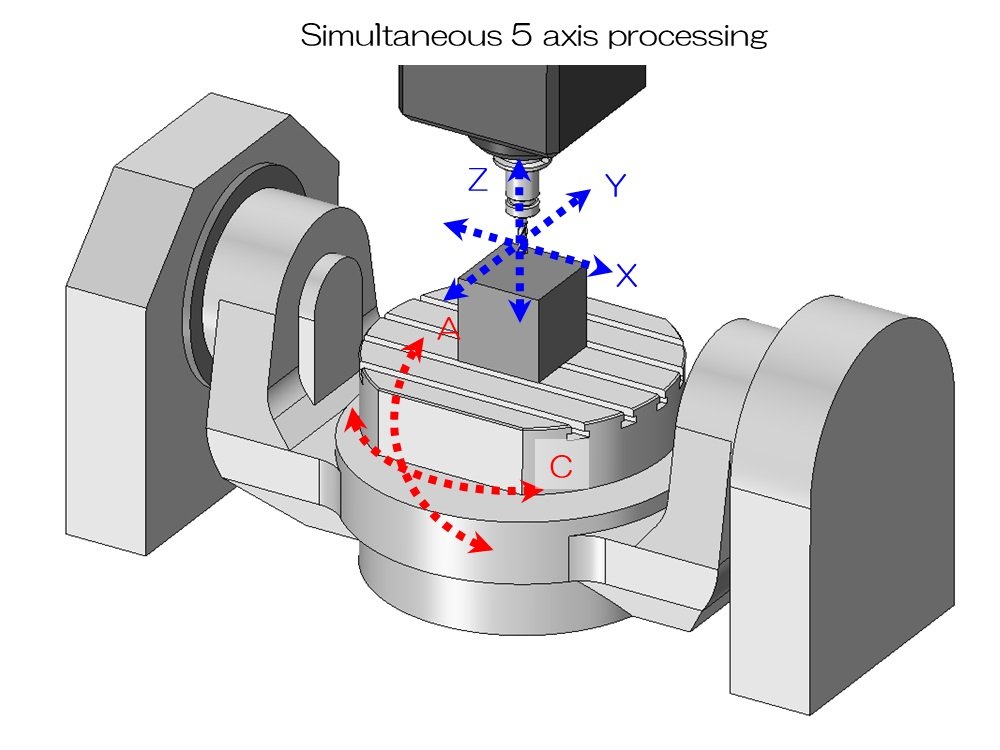

- 5-Axis CNC Machining: Combines three linear axes (X, Y, Z) with two rotational axes (often A and B, or A and C). This “multi-axis capability” lets the tool or workpiece move in five directions simultaneously, accessing nearly any angle in a single setup. It’s ideal for intricate geometries, reducing the need for repositioning.
This evolution from 3-axis to 5-axis machining has unlocked new possibilities, particularly for parts with freeform surfaces or compound angles, making it a cornerstone of modern manufacturing.
Advantages of 5-Axis CNC Machining
The shift to 5-axis CNC machining brings several technical advantages that enhance efficiency and precision, especially for complex parts. Here’s why it stands out:
Reduced Setup Time
One of the biggest wins with 5-axis machining is its ability to machine parts from multiple sides without reclamping. In 3-axis or 4-axis systems, operators often need to stop, reposition the workpiece, and recalibrate—a process that eats up time and introduces errors. With 5-axis machines, “simultaneous multi-axis movements” allow the tool to access all necessary angles in one setup, slashing setup time and boosting throughput. This is a game-changer for “high-mix, low-volume” production runs common in aerospace and medical fields.
Improved Accuracy
Fewer setups mean fewer chances for misalignment or human error. Each time a workpiece is repositioned in a 3-axis or 4-axis machine, slight deviations can creep in, affecting tolerances. 5-axis machining minimizes these risks by keeping the part in one position while the tool navigates complex paths. The ability to maintain optimal cutting angles also enhances precision, ensuring parts meet the tight tolerances required in industries like aerospace, where a millimeter can make or break performance.
Complex Geometry Machining

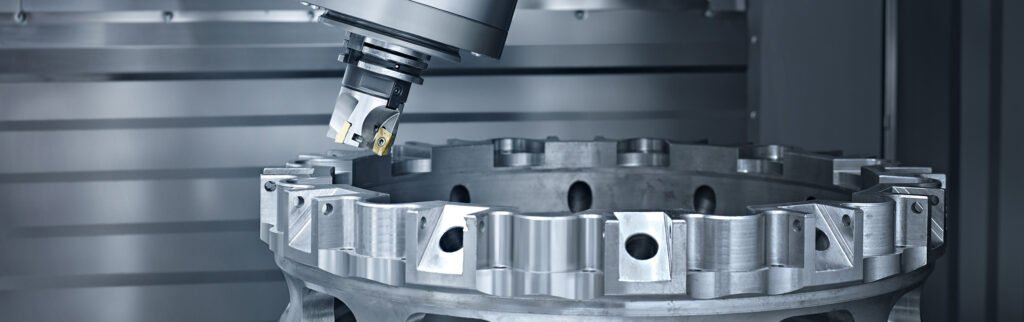

5-axis machines shine when it comes to crafting intricate shapes that defy traditional machining. Parts with curved surfaces, undercuts, or compound angles—like turbine blades or custom implants—are no match for 5-axis systems. The tool’s ability to tilt and rotate ensures it can reach every nook and cranny, producing geometries that would be impossible or impractical with fewer axes. This makes 5-axis machining the go-to for “freeform surfaces” and other complex designs.
Better Surface Finish
Continuous machining without repositioning leads to smoother surface finishes. In 5-axis systems, the tool can maintain a consistent angle relative to the workpiece, reducing tool marks and vibrations. This “tool path optimization” minimizes the need for secondary finishing operations, saving time and ensuring parts meet stringent aerodynamic or biocompatibility standards.
Increased Productivity
By consolidating multiple operations into a single setup, 5-axis machining shortens production cycles. The efficiency gained from fewer tool changes and reduced downtime translates to faster time-to-market, a critical factor in competitive industries. Reports suggest that 5-axis machining can cut production times by 20% to 50%, depending on the part’s complexity, making it a powerful tool for manufacturers under pressure to deliver quickly.
These advantages make 5-axis CNC machining a preferred choice for industries where precision, speed, and complexity are non-negotiable.
Applications in Aerospace and Medical Industries
Aerospace: Precision for High-Stakes Components
The aerospace industry relies heavily on 5-axis CNC machining to produce components that must withstand extreme conditions while maintaining precise specifications. Turbine blades, engine casings, and structural parts often feature intricate 3D shapes with complex curvatures, such as airfoil profiles or cooling channels. Traditional 3-axis machining would require multiple setups and fixtures, increasing the risk of errors and prolonging production.
With 5-axis machining, these parts can be milled from solid billets in a single setup, ensuring accuracy and consistency. For example, compressor and turbine blades for jet engines demand precise tolerances to optimize performance and heat dissipation. 5-axis machines can carve these blades with smooth surfaces and exact geometries, reducing the need for additional processes. Manufacturers have reported significant time savings—sometimes up to 30% or more—when using 5-axis machining for such components, thanks to streamlined workflows and fewer setups (Methods Machine Tools).
Medical: Custom Solutions for Patient Care
In the medical field, 5-axis CNC machining is a lifeline for producing implants, surgical instruments, and other devices that require high precision and biocompatibility. Orthopedic implants, like hip or knee replacements, often need “patient-specific” geometries to match an individual’s anatomy. 5-axis machining delivers the accuracy needed to create these custom designs, ensuring better fit and improved outcomes.
Dental implants and prosthetics also benefit from 5-axis capabilities, as they require intricate shapes that traditional methods struggle to achieve efficiently. The ability to machine complex contours with smooth finishes ensures these components meet rigorous healthcare standards. By reducing production time and enhancing precision, 5-axis machining helps medical manufacturers deliver life-changing devices faster (Gensun Precision Machining).
Case Study: Time Savings in Aerospace Manufacturing
While exact figures vary, 5-axis CNC machining is known to significantly reduce production times for complex parts. A small aerospace parts manufacturer, for instance, reported a 30% reduction in production time after adopting 5-axis technology. This was largely due to the elimination of multiple setups and the ability to machine intricate components in a single operation. Such efficiency gains allowed the company to meet strict industry standards and expand its market reach.
More broadly, the reduction in setup time and the efficiency of simultaneous multi-axis movement can lead to time savings of 20% to 50%, depending on the part’s complexity and the manufacturing process. These improvements not only boost productivity but also enable manufacturers to tackle more challenging projects with confidence (Trace-A-Matic).
Comparison Table: 3-Axis vs. 4-Axis vs. 5-Axis CNC Machining
To illustrate the differences, here’s a comparison of the three CNC machining types:
| Feature | 3-Axis | 4-Axis | 5-Axis |
|---|---|---|---|
| Number of Axes | 3 (X, Y, Z) | 4 (X, Y, Z, A/B) | 5 (X, Y, Z, A/B, C) |
| Complexity of Parts | 2D, 2.5D | 3D with undercuts | Highly complex 3D |
| Setup Time | Higher | Moderate | Lowest |
| Accuracy | Good | Better | Best |
| Surface Finish | Standard | Improved | Superior |
| Production Time | Longer | Moderate | Shortest |
| Cost | Lowest | Moderate | Highest |
This table underscores why 5-axis machining is the top choice for high-precision, complex parts, despite its higher upfront costs.
Programming Complexity: The Trade-Off
While 5-axis CNC machining offers significant benefits, it comes with increased programming complexity. Creating tool paths for simultaneous multi-axis movements requires advanced CAM (Computer-Aided Manufacturing) software and skilled operators. The need to optimize tool angles and avoid collisions adds another layer of challenge. However, modern CAM systems have made this process more accessible, allowing even less experienced operators to harness 5-axis capabilities (Astro Machine Works).
For manufacturers, the investment in training and software is often offset by the efficiency gains. The ability to produce complex parts faster and with fewer errors makes 5-axis machining a worthwhile choice for industries where quality is paramount.
Why 5-Axis Feels Like a Craft
Imagine trying to sculpt a delicate figure with a tool that can only move up and down. That’s what 3-axis machining feels like for complex parts. Now picture a tool that twists, turns, and dances around the workpiece from any angle—that’s 5-axis machining. It’s like giving a master craftsman the ultimate set of tools, blending precision with artistry. In aerospace, where a single flaw can spell disaster, or in medicine, where a perfect fit saves lives, 5-axis CNC machining isn’t just technology—it’s a necessity.
Conclusion
5-axis CNC machining is revolutionizing the manufacturing of complex parts, offering unmatched precision, efficiency, and versatility. Its ability to reduce setup times, improve accuracy, and handle intricate geometries makes it indispensable for industries like aerospace and medical, where performance and quality are critical. While the higher costs and programming complexity are considerations, the time savings—often 30% or more—and superior outcomes make it a smart investment.
For engineers and technical procurement professionals, embracing 5-axis technology means unlocking new possibilities. It’s not just about keeping up with industry demands; it’s about pushing the boundaries of what’s possible, delivering parts that are as innovative as the industries they serve.
