CNC milling is an advanced subtractive manufacturing technique in which a computer-controlled machine precisely carves material from a solid workpiece to produce intricate and highly accurate components. Central to this process is a rotating cutting tool—commonly an end mill or a ball-nose cutter—that systematically follows meticulously programmed tool paths, gradually removing layers of material until the final geometry is realized.

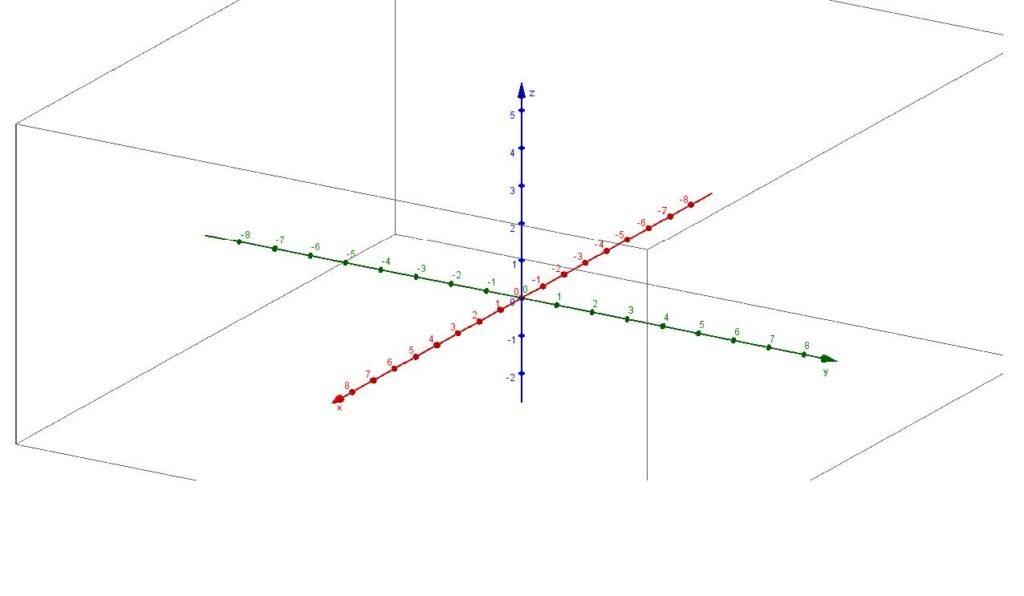

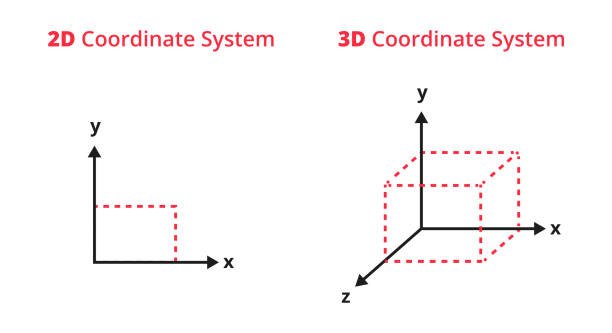

CNC, short for Computer Numerical Control, refers to the digital automation of machine movement based on a series of coded instructions known as G-code. These G-code programs orchestrate the motion of the machine across precise coordinate systems, typically the Cartesian axes (X, Y, and Z), and in some cases, polar coordinates. Through these instructions, the CNC system ensures the cutting tool’s position and movements are executed with exact precision relative to the workpiece. Commonly used G-code commands include G90 for absolute positioning, G00 for rapid moves, and G01 for controlled linear interpolation, each playing a critical role in defining the milling process with unmatched accuracy and repeatability.

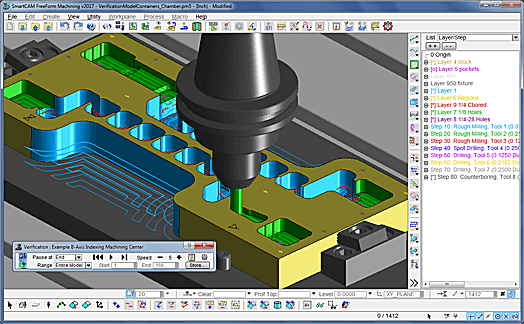

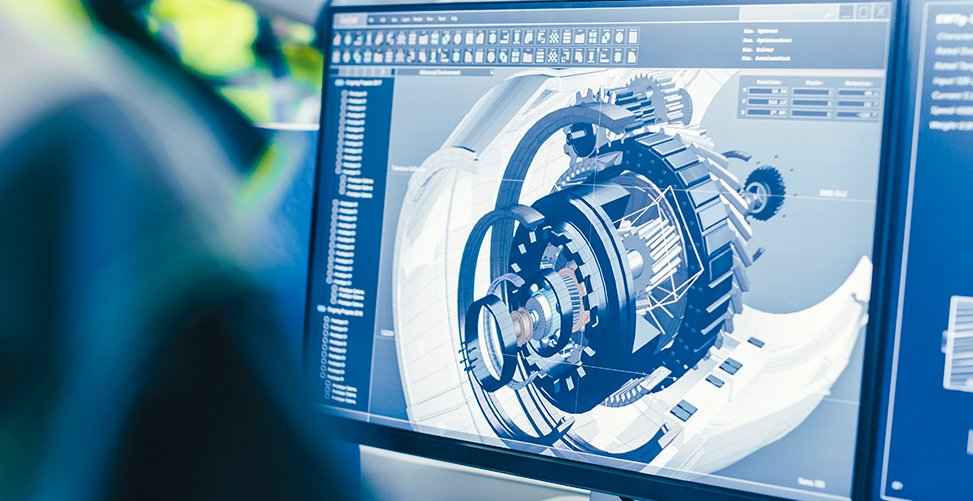

The CNC milling process begins with the creation of a detailed part model using Computer-Aided Design (CAD) software. Once the design is finalized, it transitions into Computer-Aided Manufacturing (CAM) software, where the model is translated into a set of machine-readable instructions. Typically, the CAD data is exported as an STL file and then digitally sliced into layers, each layer outlining the precise toolpaths that will guide the milling tool throughout the operation. This information is then converted into G-code, the standardized language that directs the CNC machine, enabling fully automated and highly accurate machining.
CNC milling operations are generally divided into two main phases: roughing and finishing. The roughing phase employs robust cutting parameters to rapidly remove the majority of excess material, establishing the basic form of the part. This stage is followed by finishing passes, which use finer cutting tools and more conservative settings to carefully refine the surface finish and achieve exacting dimensional tolerances. The strategic selection of tools—such as utilizing flat end mills for efficient roughing and ball nose cutters for detailed finishing—plays a crucial role in optimizing both the quality and precision of the completed part. Through this highly controlled process, CNC milling is able to deliver complex geometries and exceptional surface quality with remarkable consistency.
Modern CNC milling machines are equipped with a wide array of advanced features that significantly enhance both productivity and versatility. These include automatic tool changers that streamline the machining process, the incorporation of multiple axes—including rotary or even simultaneous five-axis capabilities—and sophisticated control systems that often leverage IoT (Internet of Things) integration. Such innovations not only boost production speed and repeatability but also enable real-time monitoring, predictive maintenance, and smart, decentralized control—cornerstones of Industry 4.0-era manufacturing. These state-of-the-art advancements maximize efficiency in high-volume production environments, while simpler CNC setups remain invaluable for low-volume runs, tool room operations, and specialized maintenance tasks.
The evolution of CNC milling traces back to traditional manual machining, where early numerical control required highly skilled labor and time-intensive, manual programming. Today, progress in CAM software has dramatically simplified the process of generating G-code, minimizing programming complexity and reducing lead times. As a result, CNC milling has become far more accessible, making it an ideal choice not only for large-scale manufacturing but also for rapid prototyping and custom fabrication—retaining its precision and efficiency despite its fundamentally subtractive nature.
Learn about CNC Milling services and get a quick quote!
How does CNC Milling work?
CNC milling is a subtractive manufacturing process in which material is removed from a workpiece by a rotating cutting tool following computer‐generated instructions. The process starts with the creation of a part design using Computer-Aided Design (CAD) software, where detailed technical drawings and 3D models are generated. These designs are then translated into machining instructions via Computer-Aided Manufacturing (CAM) software, which converts the CAD data into G-Code—a numerical control language that specifies parameters such as tool paths, spindle speeds, feed rates, and cutting depths.
Once the G-Code is generated, it is often verified with simulation software to ensure that the tool paths and machining processes will accurately produce the desired part while avoiding collisions or errors. This simulation step is critical to optimizing the machining parameters before actual production, reducing material waste and preventing potential damage.

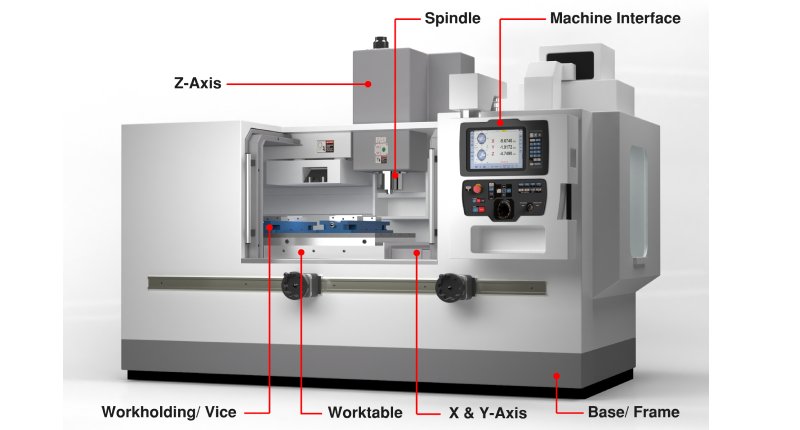

The CNC milling machine itself is built with a highly rigid mechanical structure, typically using a milling table, precisely aligned axes (commonly in the Cartesian coordinate system: X, Y, and Z), and sometimes even additional rotary axes. A robust construction using components such as welded thick-walled steel frames, profiled rail slideways, and pre-stressed linear bearings ensures that the machine maintains high accuracy and rigidity even under the forces encountered during cutting operations.
During operation, the CNC controller reads the G-Code line by line and converts these commands into electrical signals that drive stepper or servo motors. These motors move either the workpiece or the cutting tool along the predefined toolpaths. For example, the rotating spindle—sometimes capable of speeds as high as 18,000 rpm—holds the cutting tool (such as an endmill or face mill) and directs it to remove material along the programmed paths.
The cutting process involves different techniques depending on the desired outcome. Techniques such as face milling, end milling, and slotting are employed, with the tool path and cutting parameters adjusted to account for material type, desired finish, and production requirements. The milling operation benefits from either open-loop or closed-loop control systems. In closed-loop systems, sensors such as encoders or tachometers feed back information to the controller, enabling real-time adjustments to maintain precision.
Modern CNC milling machines often incorporate advanced control software, like Mach3 or Mach4, which not only interpret G-Code but also enable real-time monitoring and fine-tuning of motor control signals. This integration of hardware and software ensures that every movement is executed with minimal error, promoting high repeatability and allowing for the efficient production of complex geometries and high-quality surface finishes.
In summary, CNC milling works by transforming a digital design into executable machining instructions via CAD/CAM software. The programmed G-Code then commands a mechanically rigid and precisely controlled milling machine to remove material strategically from a workpiece, thereby producing a part with high precision, repeatability, and efficiency.
