CNC Turning Services
Get quality custom turned parts for rapid prototyping and end-use production. Lead times are as fast as 1 day.
Certifications ISO 9001:2015 | AS9100D | ITAR
Mekalite's Top CNC Turning Services
Mekalite’s advanced CNC turning services provide rapid delivery of customized prototypes and production parts, often in as little as one day. Using state-of-the-art CNC lathes with live tooling, we precisely machine cylindrical components and complex features such as axial and radial holes, flats, grooves, and slots. We support a wide range of materials and offer various surface finishes, ensuring each part meets strict quality standards. Mekalite is your reliable partner for fast, accurate, and consistent CNC-turned parts for both prototyping and end-use applications.
Choosing Mekalite’s CNC turning services means you get the perfect combination of speed, precision and reliability for your product development and mass production.
Contact Email：wendy@mekalite.com
Design Guidelines for CNC Turning
Our CNC turning guidelines outline key design considerations to improve manufacturability, enhance visual quality, and minimize production time for your parts.
| US | Metric | ||
| Maximum Dimensions | Diameter | 3.95 in. | 100.33mm |
| Length | 9 in. | 228.6mm | |
| Minimum Dimensions | Diameter | 0.16 in. | 4.07mm |
| Length | 0.05 in. | 1.27mm | |
| Wall Thickness | 0.020 in. | 0.51mm | |
| Angle | 30° | 30° | |
| Tolerances | +/- 0.005 in. | +/- 0.13mm | |
Additional Notes on CNC Turning Guidelines
- Small features may be allowed, but the diameter in any region should not be less than 0.030 in. (0.76mm).
- Sharp conical points are allowed; angles should be greater than 30 degrees. Walls thinner than 0.020 in. (0.5mm) typically do not survive the machining process.
Materials for CNC Turning
We offer a wide selection of metal materials—including aluminum, brass, low carbon steel, stainless steel, steel alloys, and titanium—suitable for diverse applications across multiple industries. Select the ideal material for your turned parts to meet your specific needs.
- Aluminum
- Brass
- Low Carbon Steel
- Steel Alloy
- Stainless Steel
- Titanium
Surface Finish Options for Turned Parts
Turned parts generally feature exceptionally smooth surface finishes, especially on cylindrical areas, which are noticeably finer when machined on a lathe compared to a mill. For components that can be produced by either method, this advantage should be considered. However, features created using live tooling, such as flats and slots, may exhibit visible tool marks.
For an upgraded appearance, metal parts can be lightly bead blasted to achieve a uniform matte finish. Additionally, harder metals like steel and stainless steel can benefit from bead blasting to deburr sharp edges and eliminate metal slivers, resulting in safer and more refined components.
| Aluminum | Edges broken with visible toolmarks, edges broken with light bead blast, or sharp edges with visible toolmarks |
|---|---|
| All other metals | Edges broken with visible toolmarks or edges broken with light bead blast |
Material: Aluminum
Surface Finish: Broken Edge

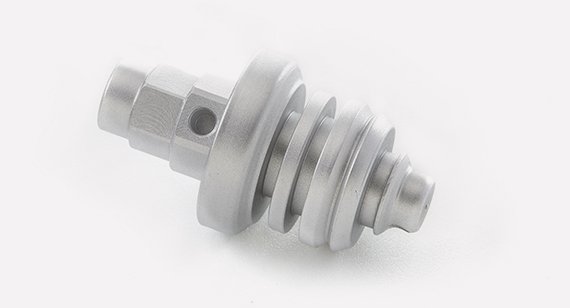

Material: Aluminum
Surface Finish: Bead Blast

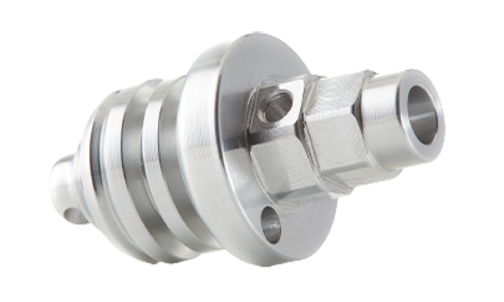

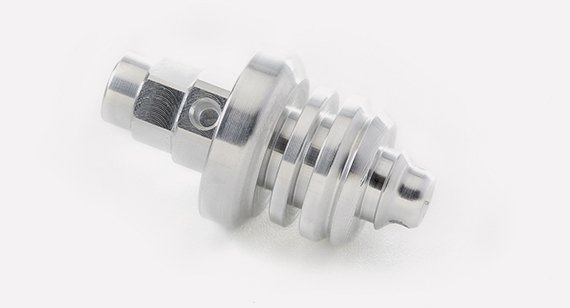

Material: Aluminum
Surface Finish: Sharp Edge
Anodizing and Chromate Plating Specifications
| Anodize | Hard Anodize | Chromate |
|---|---|---|
MIL-A-8625 Type II, Class 2 (Blk) MIL-A-8625 Type II, Class 1(Clr) | MIL-A-8625 Type III, Class 2 (Blk) | MIL-DTL-5541 Type II, Class 3 (Clr) |
Quick-turn Finishing
Here are the requirements to get parts in as fast as 4 days (1-day expedite + 3 days for plating):
High-requirement Finishing
Need to meet AS9100 or ITAR standards? Choose our domestic precision machining service. For complex anodizing or plating—especially with custom colors or materials like titanium or nickel—utilize our digital network of manufacturers, ideal for specialized parts and finishes.

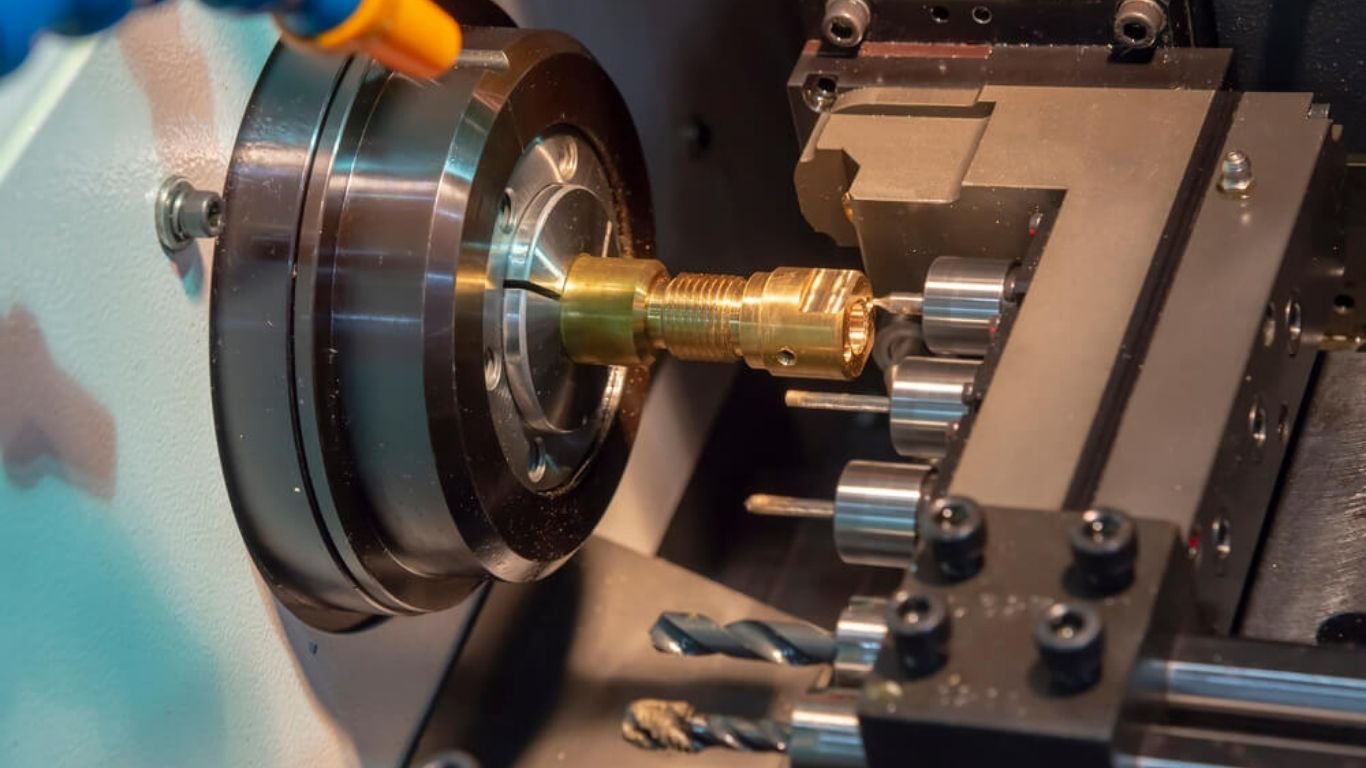

What is CNC Turning?
CNC turning is a subtractive manufacturing process in which a metal rod is rotated while a cutting tool removes material to create precise final parts. Our advanced CNC lathes are equipped with live tooling, allowing us to machine flat features and holes directly into the workpiece. We also offer both outside diameter (OD) and inside diameter (ID) threading to meet a wide range of application requirements.
Turned parts can then be left as-machined, with visible tool marks, or bead blasted. When the run is complete, parts are inspected, boxed and shipped shortly thereafter.
