As a core technology of modern manufacturing, CNC turning can efficiently and accurately process various axisymmetric parts. Whether you are a product designer, mechanical engineer or manufacturer, a deep understanding of CNC turning technology can help you make more scientific process planning and product decisions, and significantly improve the processing quality and production efficiency of parts. This guide will systematically sort out the basic principles of CNC turning, operating procedures, equipment types, tool selection, process parameter settings, and comparisons with other processing technologies to help you achieve process optimization and cost control in actual manufacturing projects.
What is CNC Turning?

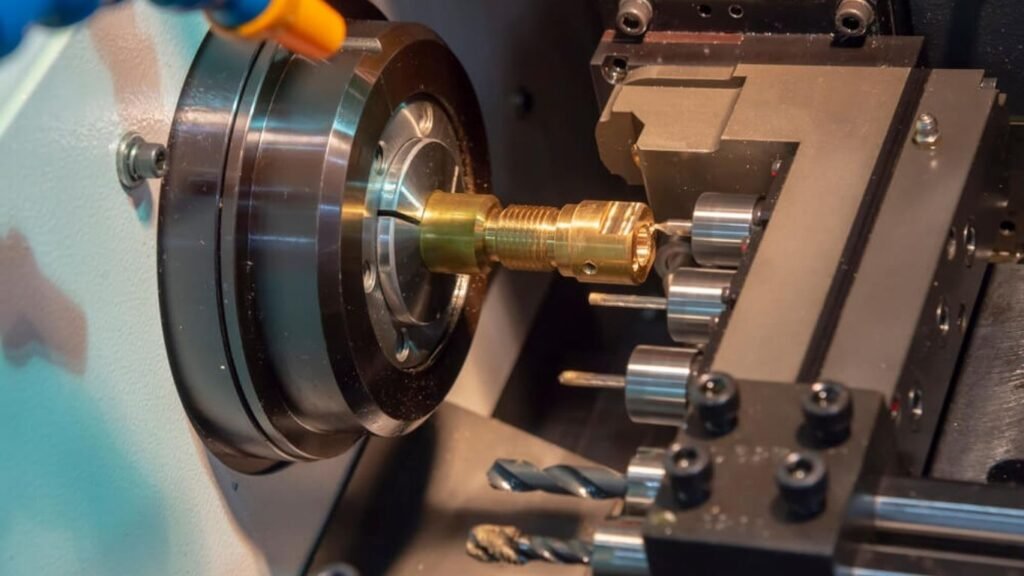

CNC (Computer Numerical Control) turning is a typical subtractive manufacturing process that uses fixed cutting tools to remove material layer by layer from the surface of a high-speed rotating workpiece to achieve precise processing of the workpiece. The workpiece is generally a cylindrical bar or blank, which is clamped in a chuck and rotates. The tool moves precisely along one or more coordinate axes according to a pre-programmed CNC program to achieve processing of complex contours and dimensions. CNC turning has a high degree of automation, excellent dimensional accuracy and excellent repeatability. It can flexibly respond to the production needs of a variety of parts. Therefore, it is widely used in high-demand manufacturing fields such as aerospace, automobiles, medical devices and electronics.
Historical Evolution
CNC turning technology originated from traditional manual lathes in the early 20th century and has undergone continuous innovation. In the 1940s and 1950s, with the emergence of numerical control (NC) technology, lathes achieved initial automation, laying the foundation for modern production models. In the 1970s, the integration of computer technology gave birth to CNC (computer numerical control) systems, which greatly improved processing accuracy, automation level and processing flexibility. Today, advanced CNC turning centers not only have turning functions, but also integrate multiple processing operations such as milling and drilling, which greatly improves the processing capabilities and production efficiency of complex parts, and promotes the manufacturing industry to continue to move towards higher precision and intelligence.
How Does CNC Turning Work?

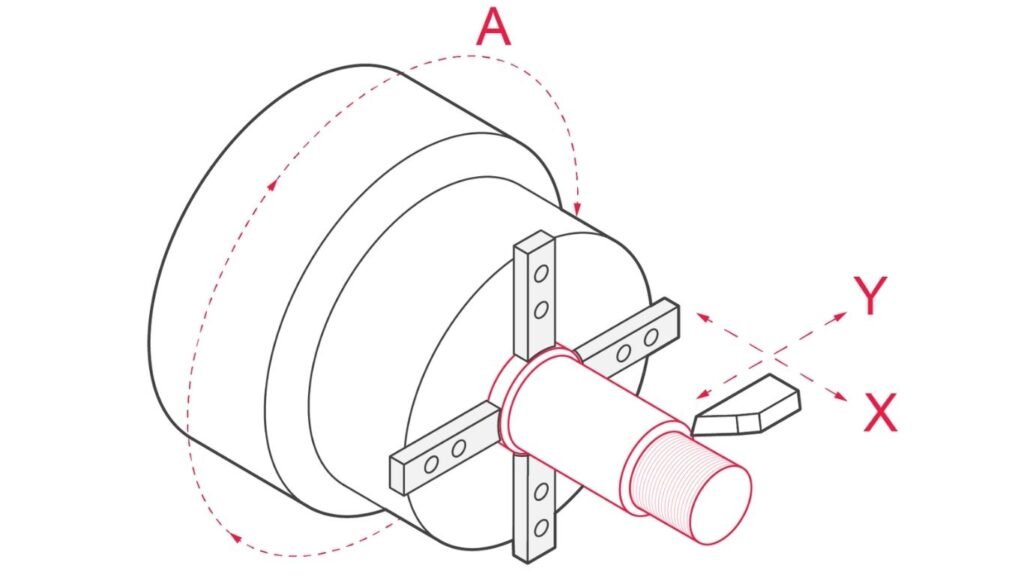

The CNC turning process starts with a digital design, usually using CAD (computer-aided design) software such as AutoCAD or SolidWorks to model the part. Once the design is complete, the file is converted into a CAM (computer-aided manufacturing) file, which generates G-code instructions for the CNC machine tool. These instructions precisely control key parameters such as tool path, cutting speed, feed rate and cutting depth. During the processing, the machine tool’s spindle drives the workpiece to rotate, and the tool is mounted on a turret or tool holder. According to the program settings, the material is removed in sequence to gradually obtain the desired part shape.
Key Components of a CNC Turning Machine
A CNC turning machine comprises several critical components:
- CNC Control Panel: The interface where operators input and manage G-code, controlling the machine’s movements.
- Spindle: Rotates the workpiece at precise speeds, ensuring accurate material removal.
- Chuck and Collet: Secure the workpiece, with chucks accommodating various shapes and collets offering precision for smaller parts.
- Tool Turret: Holds multiple cutting tools, enabling rapid tool changes for complex operations.
- Headstock and Tailstock: Support the workpiece, with the headstock driving rotation and the tailstock providing stability for longer pieces.
- Lathe Bed: The rigid base that aligns all components for smooth operation.
- Carriage: Moves the cutting tool along the workpiece, ensuring precise positioning.
CNC Turning Operations
CNC turning supports a wide range of operations, each tailored to specific part features:
External Operations
- Turning: Shapes the outer diameter to create cylinders, shafts, or tapers.
- Hard Turning: Machines high-hardness materials, often replacing grinding for wear-resistant parts.
- Taper Turning: Produces conical shapes by gradually altering the diameter.
- Facing: Creates a flat surface at the workpiece’s end, ensuring perpendicularity.
- Grooving: Cuts recesses for O-rings, oil grooves, or aesthetic features.
- Parting (Cutoff): Separates the finished part from the stock.
- Threading: Forms internal or external threads for screws or bolts.
- Knurling: Impresses a textured pattern for improved grip.
Internal Operations
- Drilling: Creates precise holes along the rotational axis or off-axis in advanced machines.
- Boring: Enlarges or refines existing holes for accuracy and finish.
- Reaming: Smooths and sizes pre-drilled holes to tight tolerances.
Advanced Operations
- Polygonal Turning: Uses synchronized tool rotation to create non-circular shapes like hexagons.
- Live Tooling: Enables milling, drilling, or tapping on turning centers with rotating tools.
Types of CNC Turning Machines
CNC turning machines vary in design and capability, each suited to specific applications:
- Horizontal CNC Lathes ($30,000–$150,000): Feature a horizontal spindle, ideal for small to medium parts in aerospace, automotive, and electronics. They offer high precision and versatility.
- Vertical CNC Lathes ($40,000–$200,000): Designed for heavy, large-diameter workpieces, such as gears and flywheels, with superior stability and chip management.
- Horizontal Turning Centers ($50,000–$250,000): Combine turning with milling and drilling, perfect for complex parts in robotics and defense.
- Vertical Turning Centers ($60,000–$300,000): Handle intricate geometries with milling capabilities, used in aerospace and industrial machinery.
Tooling in CNC Turning

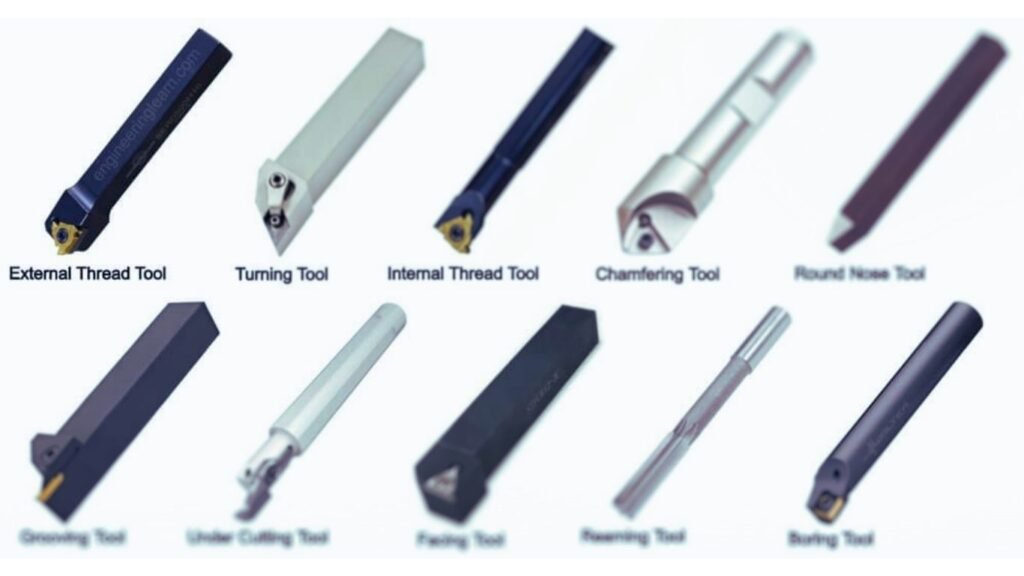

The choice of tooling is critical for achieving desired results. Common tools include:
- Turning Tools: Shape external surfaces, made from high-speed steel or carbide.
- Boring Bars: Enlarge and finish internal holes with precision.
- Parting Blades: Cut off finished parts efficiently.
- Thread Cutting Tools: Create accurate threads for assembly.
- Knurling Tools: Produce textured surfaces for grip.
- Drilling Bits and Reamers: Form and refine holes.
- Grooving Tools: Cut precise recesses.
- Face Mills: Flatten large surfaces in specific setups.
Advanced tooling, like Sandvik’s Inveio® inserts with unidirectional crystal structures, enhances wear resistance and heat transfer, extending tool life and reducing costs.
Key Parameters in CNC Turning
Optimizing CNC turning requires careful control of several parameters:
- Cutting Speed: The speed at which the tool engages the workpiece, affecting efficiency and finish.
- Feed Rate: The rate at which the tool moves along the workpiece, influencing material removal and surface quality.
- Depth of Cut: The depth of material removed per pass, impacting shape and tool wear.
- Spindle Speed: The workpiece’s rotation speed, critical for precision.
- Tool Geometry and Material: Determines cut type and durability.
- Coolant Flow: Manages heat to prolong tool life and maintain part quality.
- Material Properties: Influences parameter settings for optimal machining.
- Machine Rigidity: Ensures stability for accurate cuts.
- Tolerance Levels: Defines the precision required, often ±0.001 inches or better.
Materials for CNC Turning

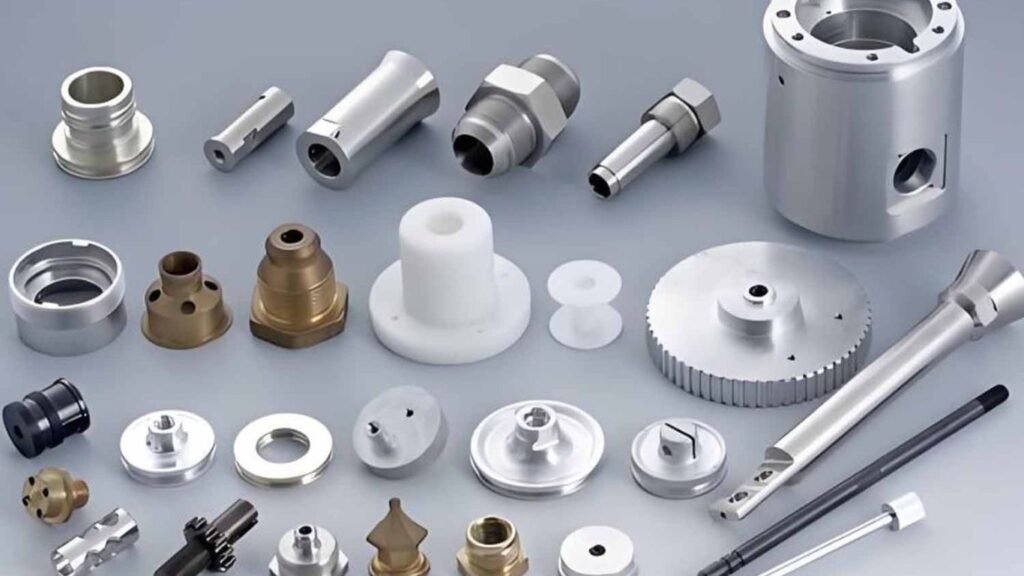

CNC turning is compatible with a wide range of materials, each suited to specific applications:
- Metals:
- Steel: Durable for robust components like gears.
- Aluminum: Lightweight for aerospace and automotive parts.
- Brass and Copper: Low-friction and conductive for electrical fittings.
- Titanium and Nickel Alloys: High-strength for medical and aerospace.
- Plastics:
- Nylon, Polycarbonate, ABS: Versatile for consumer goods.
- PTFE, PEEK: High-performance for medical and industrial uses.
- Composites and Wood: Used for specialized applications.
Material choice affects machining parameters, tool selection, and part properties like strength and finish.
CNC Turning vs. CNC Milling
While CNC turning excels at axially symmetric parts, CNC milling offers greater versatility for complex geometries. Here’s how they compare:
- Workpiece Motion:
- Turning: Workpiece rotates; tool is stationary or moves linearly.
- Milling: Tool rotates; workpiece is stationary or moves in multiple axes.
- Part Geometry:
- Turning: Best for cylinders, cones, and disks.
- Milling: Ideal for slots, pockets, and 3D features.
- Surface Finish:
- Turning: Produces smoother, polished finishes due to continuous rotation.
- Milling: May leave tool marks, though fine finishes are achievable.
- Tooling and Setup:
- Turning: Simpler setup with fewer tools.
- Milling: Requires multiple tools and longer setup times.
- Applications:
- Turning: Shafts, bolts, pulleys.
- Milling: Housings, brackets, complex prototypes.
Advantages and Disadvantages
Advantages
- Precision: Achieves tolerances as tight as ±0.001 inches.
- Efficiency: High-speed production reduces lead times.
- Versatility: Handles diverse materials and shapes.
- Repeatability: Ensures consistent quality across batches.
- Safety: Automated operation minimizes operator risk.
Disadvantages
- Shape Limitation: Primarily suited for axially symmetric parts.
- Initial Cost: High investment in machines and software.
- Skill Requirement: Needs trained programmers and operators.
Design Considerations for CNC Turning
To optimize parts for CNC turning, consider:
- Geometry: Design for rotational symmetry to leverage turning’s strengths.
- Material: Choose machinable materials like aluminum or brass for efficiency; harder materials may require specialized tools.
- Tolerances: Specify realistic tolerances to balance precision and cost.
- Size and Weight: Ensure the workpiece fits the machine’s capacity and maintains balance.
- Surface Finish: Adjust cutting speed and feed rate for desired smoothness.
Alternative Manufacturing Methods
If CNC turning isn’t suitable, consider:
- CNC Milling: For complex, non-symmetric parts.
- Injection Molding: Cost-effective for high-volume plastic parts.
- Die Casting: Ideal for large-scale metal components.
- 3D Printing: Rapid prototyping for intricate designs, though less durable.
Common Challenges and Solutions
CNC turning can face issues like:
- Tool Wear: Use durable inserts and optimize cutting parameters.
- Surface Imperfections: Adjust feed rate and coolant flow.
- Vibrations: Ensure machine rigidity and workpiece balance.
- Programming Errors: Validate G-code before machining.
- Chip Management: Implement effective chip evacuation systems.
Sustainability in CNC Turning
CNC turning is increasingly eco-friendly through:
- Material Efficiency: Minimizing waste with precise cuts.
- Energy-Saving Machines: Modern designs reduce power consumption.
- Recycling: Reusing metal shavings and scrap.
- Eco-Friendly Coolants: Using biodegradable lubricants.
Choosing the Right CNC Turning Service
Select a provider based on:
- Expertise: Proven experience in your industry.
- Equipment: Advanced machines for precision and complexity.
- Quality Control: Rigorous inspection processes.
- Turnaround: Ability to meet project deadlines.
- Support: Design for Manufacturability (DFM) feedback.
Conclusion
CNC turning is a powerful, precise, and versatile manufacturing process, ideal for creating axially symmetric parts across industries. By understanding its operations, machine types, tooling, and parameters, you can harness its full potential for your projects. Whether producing prototypes or high-volume components, CNC turning delivers quality and efficiency. For expert CNC turning services, explore providers like 3ERP or Fictiv, which offer advanced capabilities and comprehensive support to bring your designs to life.
